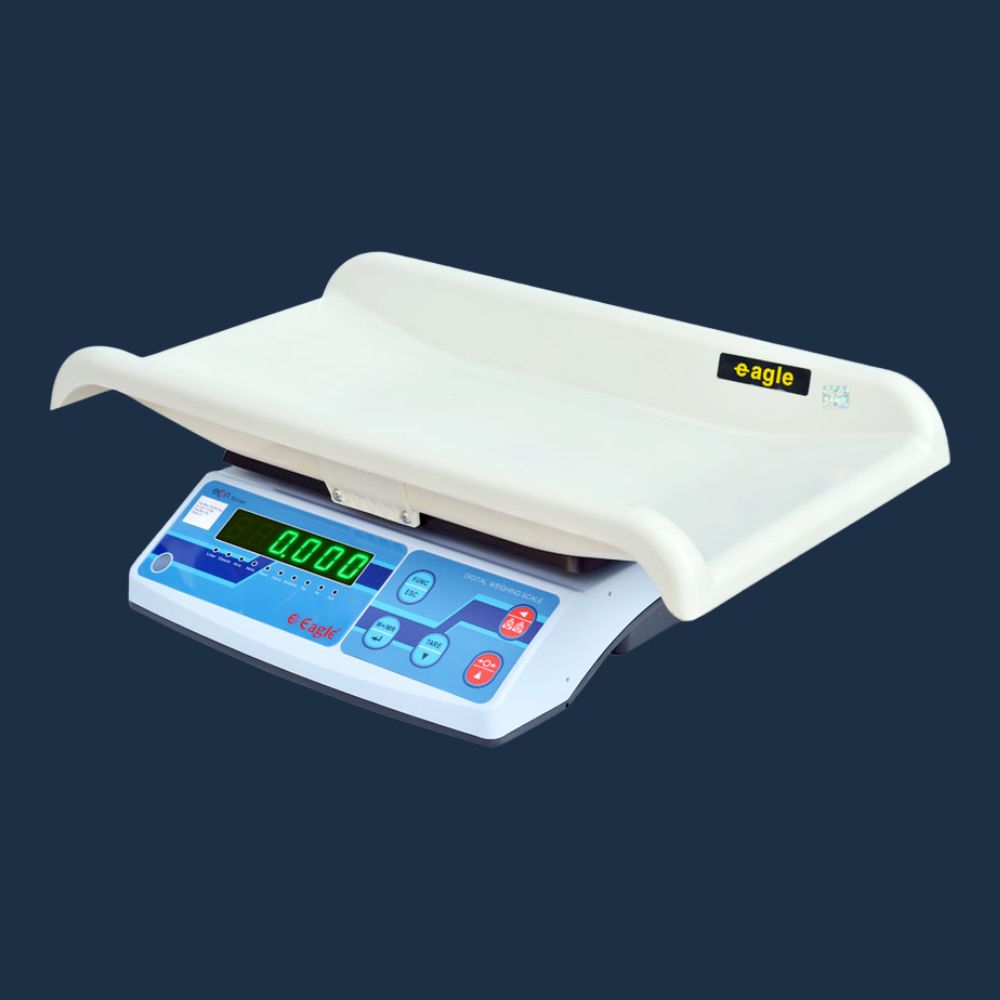

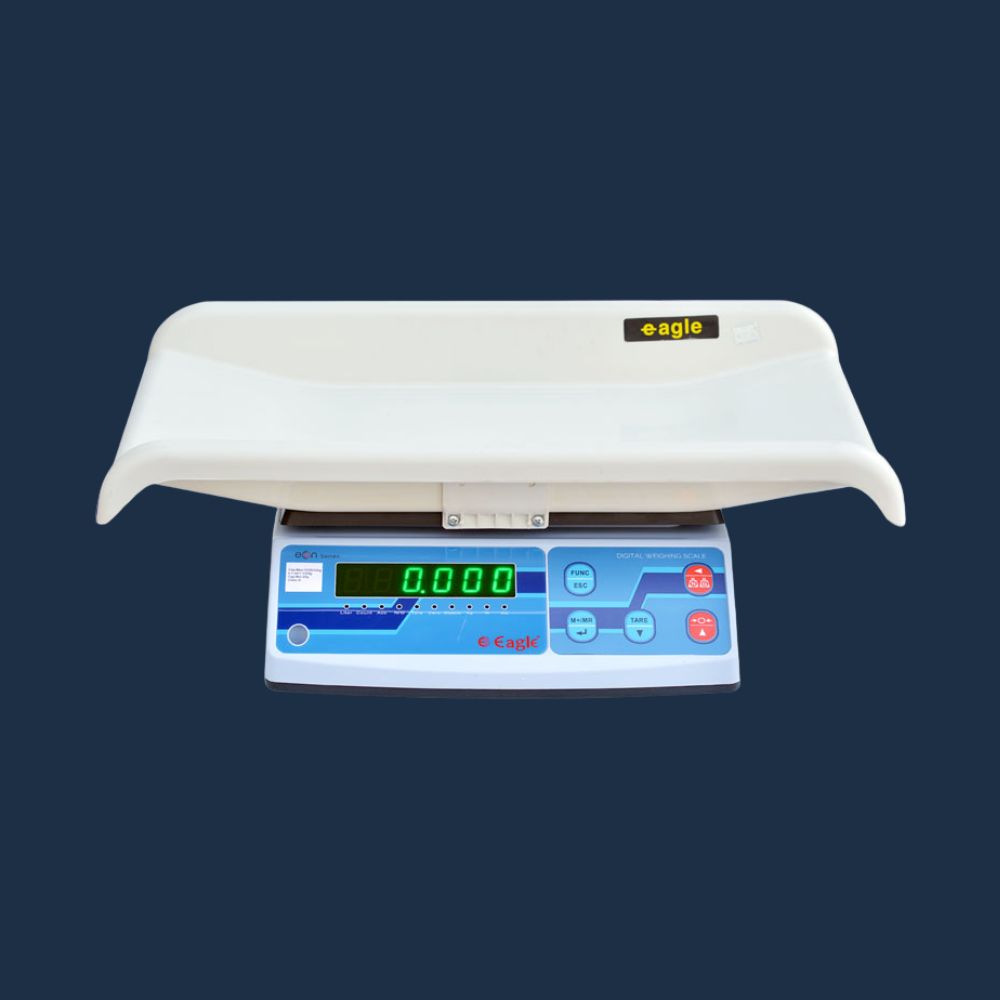

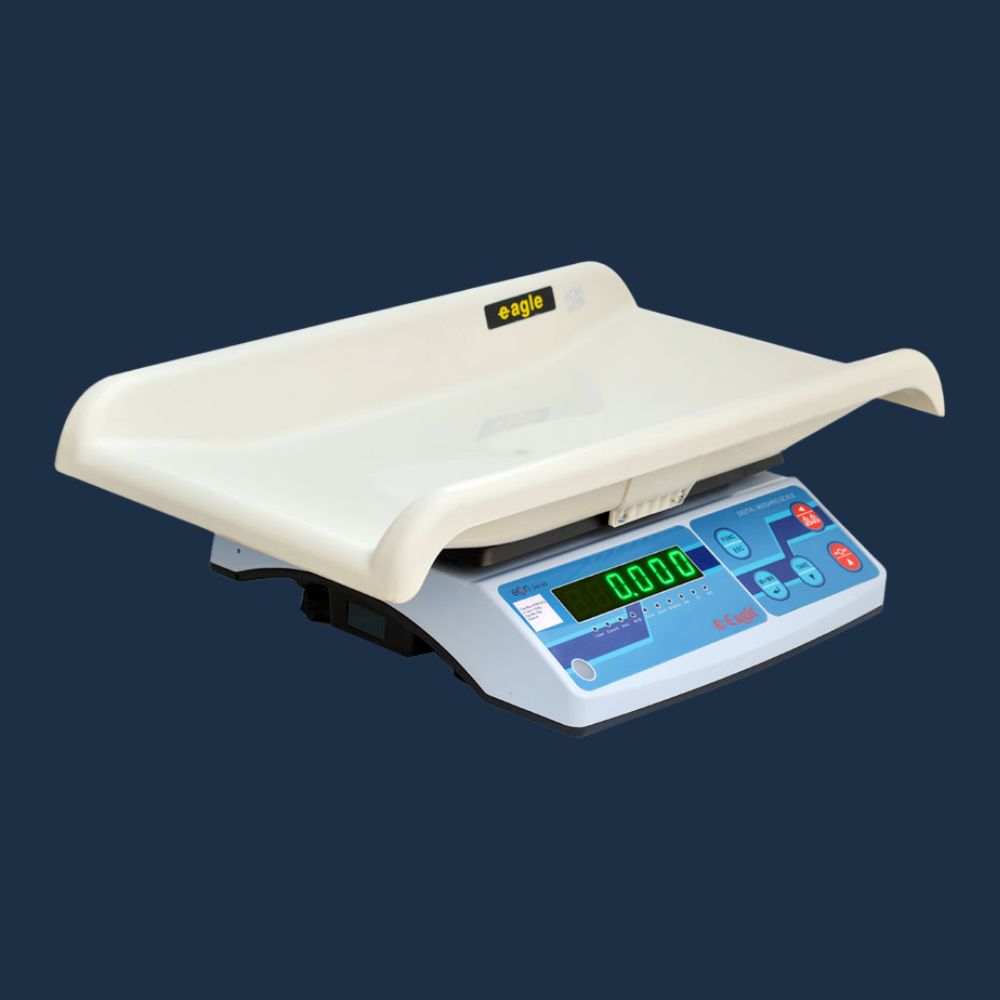

The ECON range baby weighing series from Civa Industrial Solutions brings the care and precision needed for accurate infant weighing. It is specially designed to provide reliable and gentle weighing performance. The scale features an easy-to-view dual display with a 20 mm bright green LED front display and a 14 mm bright green LED back display, ensuring clear visibility in all lighting conditions.
The ECON range from Civa Industrial Solutions is developed keeping in mind the needs of rural areas where voltage fluctuations are common, making the scale capable of delivering consistent performance even under extremely low voltage conditions. Designed for dependable operation anytime and anywhere, the baby weighing scale from Civa Industrial Solutions ensures accuracy, durability, and ease of use for healthcare centers, clinics, and hospitals.
| Parameter | Specification |
|---|---|
| Physical Dimension | 340 × 320 × 110 mm |
| Physical Dimension of Baby Tray | 550 × 270 × 90 mm |
| Weight Sensor | Aluminium Loadcell – IP65 |
| Net Weight | 3.5 kg |
| Processor | 32 Bit ARM Processor |
| Keyboard | 5 Keys |
| Display Type | LED (Green) |
| No. of Display Window | Dual Display (Front & Back) |
| Display Size | 20 mm Front Display & 14 mm Back Display |
| Repeatability | ± 1d |
| Linearity | ± 1d at Half Load & ± 2d at Full Load |
| Creep | ± 2d (for 3 minutes with full capacity) |
| Calibration Method | External Calibration – Software Based |
| Power Connector | 2 Pin Mains Cord (5A) |
| Power Supply | 150 V – 230 V AC |
| Frequency | 50 – 60 Hz |
| Power Consumption | < 10 Watts |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 95% RH Max (Non-Condensing) |
| Battery Capacity | 6V / 4.5 AH |
| Over-load | 100% of Scale Capacity +9e |
| Safe-load | 150% of Scale Capacity |
| Stabilisation Time | < 4 Seconds |
| Internal Resolution | 20 Bit ADC (10,48,756 Counts) |
| CE Certificate No | PICL/CE/0617/8146 |
| Model | Platform Size | Capacity | Accuracy | HSN Code | MOC Housing | MOC Pan |
|---|---|---|---|---|---|---|
| EMC-IBWS | 550 × 270 × 90 mm | 30 kg | 5 g | 84238100 | ABS Plastic | Stainless Steel 304 |
